Argox O4-250 Pro

Description

Printing Method	Direct Thermal & Thermal Transfer
Printing Resolution	203 dpi(8 dots/mm)
Printing Speed	Max. 7 ips
Printing Length	Max. 100”(2540 mm)
Printing Width	Max. 4.25” (108 mm)
Memory	128 MB SDRAM, 128MB Flash ROM
CPU Type	32 bit RISC microprocessor
Sensors	Reflective sensor x 1 (movable) & Transmissive sensor x 1 (fixed, 6.27mm offset)
Operation Interface	LED Indicator x 2, Button(Feed) x 1

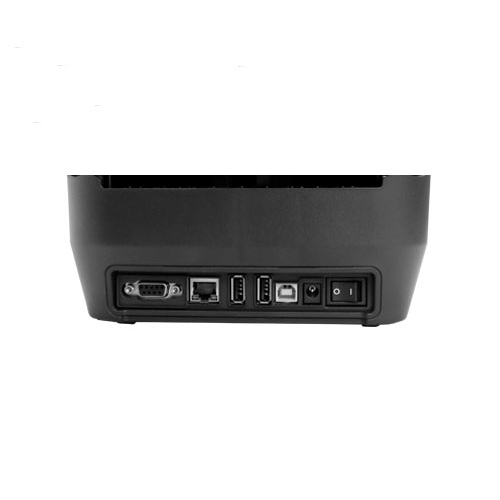

Communication Interface	USB 2.0 device, RS-232, Ethernet 10/100 Mbps, USB 2.0 host
Fonts	Internal character sets standard, 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24×24 4 direction 0 ~ 270 rotation Soft fonts are downloadable, GB 18030 Standard (Chinese coded character set) support. Ability to print any Windows True Type font easily. Support scalable font
Wireless Security	N/A
1D Barcodes	PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、UCC/EAN-128、,UCC/EAN-128 K-MART、 UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS) PPLB: Code 39、 UPC-A、 UPC-E、 Matrix 2 of 5、 UPC-Interleaved 2 of 5、Code 39 with check sum digit 、Code 93、EAN-13、EAN-8 (Standard, 2 /5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、UCC/EAN code 128 (GS1-128) 、 Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、German Postcode、Matrix 2 of 5、 UPC Interleaved 2 of 5、 EAN-13 2/5 digit add-on、 UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、GS1 Data bar (RSS) PPLZ: Code39、 UPC-A、 UPC-E、 Postnet、 Code128 subset A/B/C、Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、Code 93、Code 39 with check sum digit、MSI、EAN-8、Codabar、Code 11、EAN-13、Plessey、GS1 Data bar (RSS) 、 Industrial 2 of 5、 Standard 2 of 5、 Logmars
2D Barcodes	MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, Composite Codes, Aztec
Graphics	PPLA: PCX, BMP, IMG, GDI and HEX format files PPLB: PCX , Binary Raster, BMP and GDI PPLZ: GRF, Hex and GDI
Emulation	PPLA, PPLB, PPLZ, Auto
Software-label Editing	BarTender, ArgoxBar Pro, Printer Tool, Font Utility, iLabelPrint+
Software-utility	Printer Tool
Driver tools	Windows 10 ,Windows 11,Windows Server 2016 64-bit (x64) editions, LINUX Driver, macOS Driver, Raspberry Pi Driver
Media Type	Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label
Media	Max. width: 4.65” (118mm). Min. width: 0.8” (20mm). Thickness: 0.0024”~0.008” (0.06mm~0.2mm) 5”(127mm) OD on a 1”/1.5” (25.4/38 mm) ID core; 4.5”(115mm) OD on a 0.5” (12.7mm) ID core Dealer Option external media stand 8” OD on 1”/3” ID Core
Ribbon	Ribbon width: 1”~4.33”(25.4 mm~110mm), Ribbon length: Max. 110m. Core size ID 0.5”(12.7 mm), Core width: 4.33”(110mm)with notch Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)
Drop Resistance	N/A
Printer Dimensions	W 209mm x H 179.2mm x D 266mm
Printer Weight	2.2 kgs
Power Source	Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A
Battery	N/A
Operation Environment	Operation Temperature: 40°F~100°F (4°C~38°C), 0% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C)
Real Time Clock	N/A
Standard Item	N/A
Optional Items	Guillotine-Full Cutter , Rotary Cutter, Peeler , External media stand,Bluetooth v2.1, Bluetooth v4.2, WLAN
Agency Listing	CB, CE, FCC, IC, RoHS, UL
Attention	*Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
